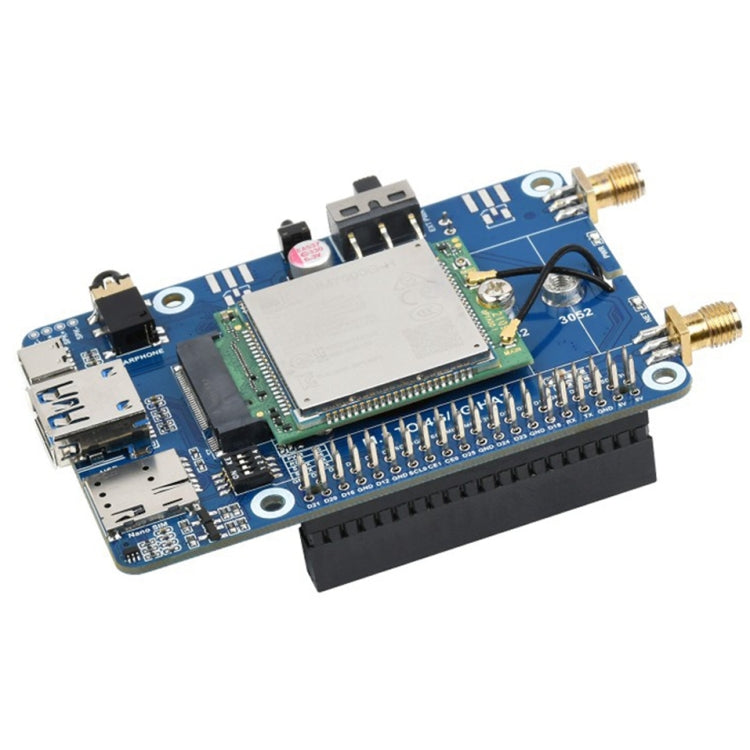

Waveshare SIM7600G-H M.2 4G HAT LTE CAT4 High Speed GNSS Global Band Module for Raspberry Pi

Características

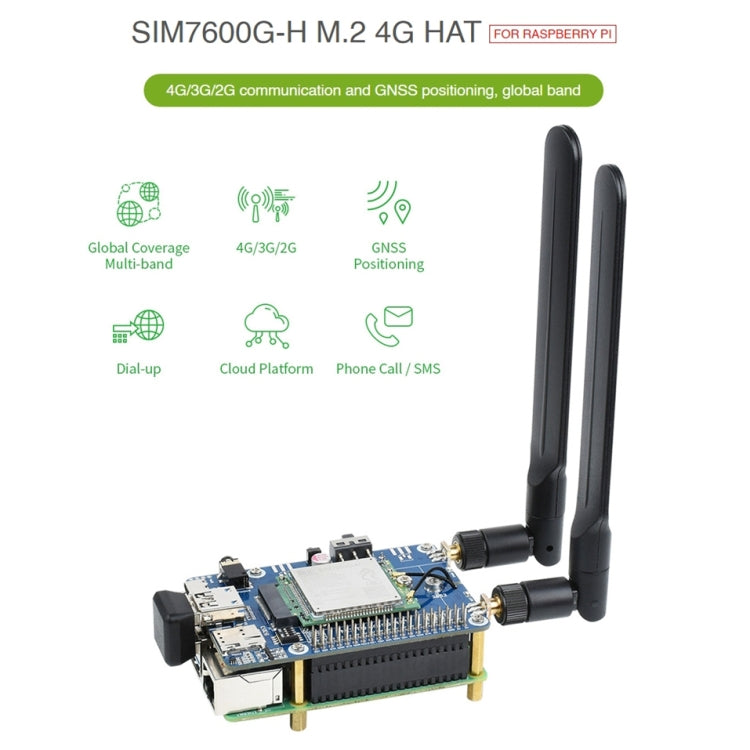

1. This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.
2. Support dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
3. GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station

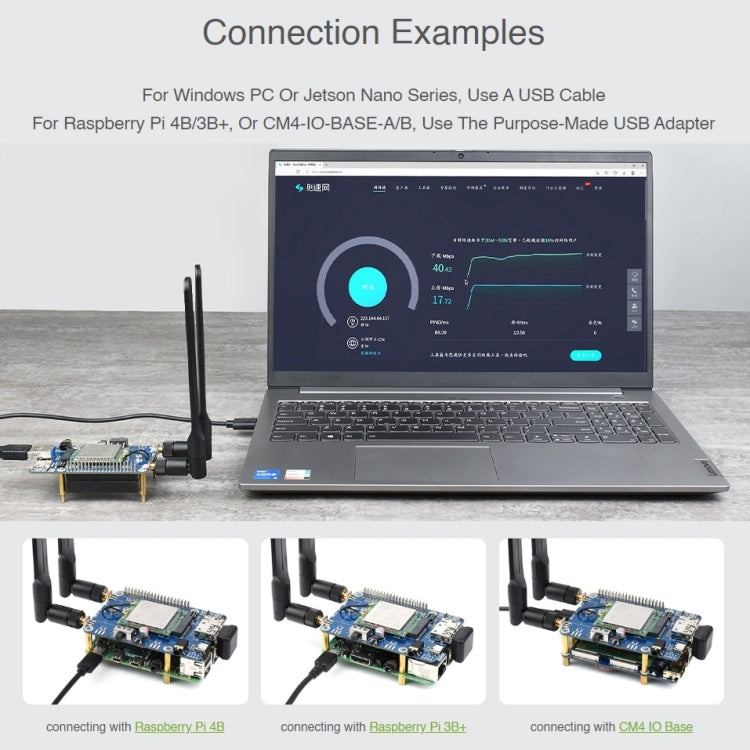

4. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication

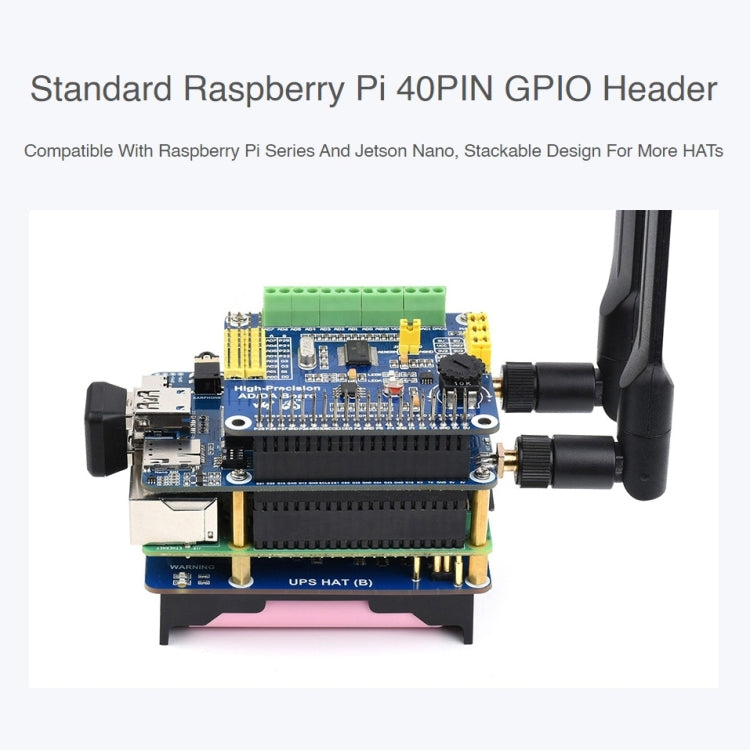

5. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
7. El conector USB-C a bordo, habilitado a través del interruptor, para conectar la fuente de alimentación independiente para el módulo, permite más cargas, Fuente de alimentación flexible AMD estable
8. Interruptor de encendido/apagado de la fuente de alimentación a bordo, botón de reinicio e indicador del LED, fácil de encender/apagar el módulo o monitorear el estado operativo
9. Interfaces de antena de SMA 4X reservadas a IPEX, con conectores 2X pre-vendido para usar antenas fácilmente, permite cambiar la posición de la antena SMA
10. Onboard audio jack and audio decoder, allows audio operation like making phone call
11. High efficiency power supply circuit, up to 3A output current
Especificaciones
Banda de frecuencia:
1. LTE Cat-4: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
2. LTE-TDD: B34, B38, B39, B40, B41
3. 3G: UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
4. 2G: GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS:
1. Satellite systems: GPS, Beidou, GLONASS, GALILEO, QZSS
2. Receiver type:
- 16-channel
- C/A Code
3. Sensitivity:
- -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
- Cold starts: -148 dBm
4. Time-To-First-Fix (open air):
- Cold starts: Less than 35s
- Hot starts: Less than 1s
SMS and Audio
1. SMS:
- Supported types: MT, MO, CB, Text, PDU
- Storage: USIM card and ME (default)
2. Audio feature:
- Support echo cancellation
- Support noise reduction
Lista de paquetes
1. M.2 a 4G/5G Hat x 1
2. SIM7600G-H-M.2 x 1
3. Antena 2pcs x 1
4. Cable de adaptador IPEX 2pcs x 1
5. Encabezado de pin de 2*20pin x 1
6. Antena pasiva GPS x 1
7. Cable de doble enchufe USB3.0 X 1
8. Adaptador USB3.0 x 1
9. Adaptador USB2.0 X 1
10. CAP de protección SMA 2pcs x 1
11. Paquete de tornillos x 1
